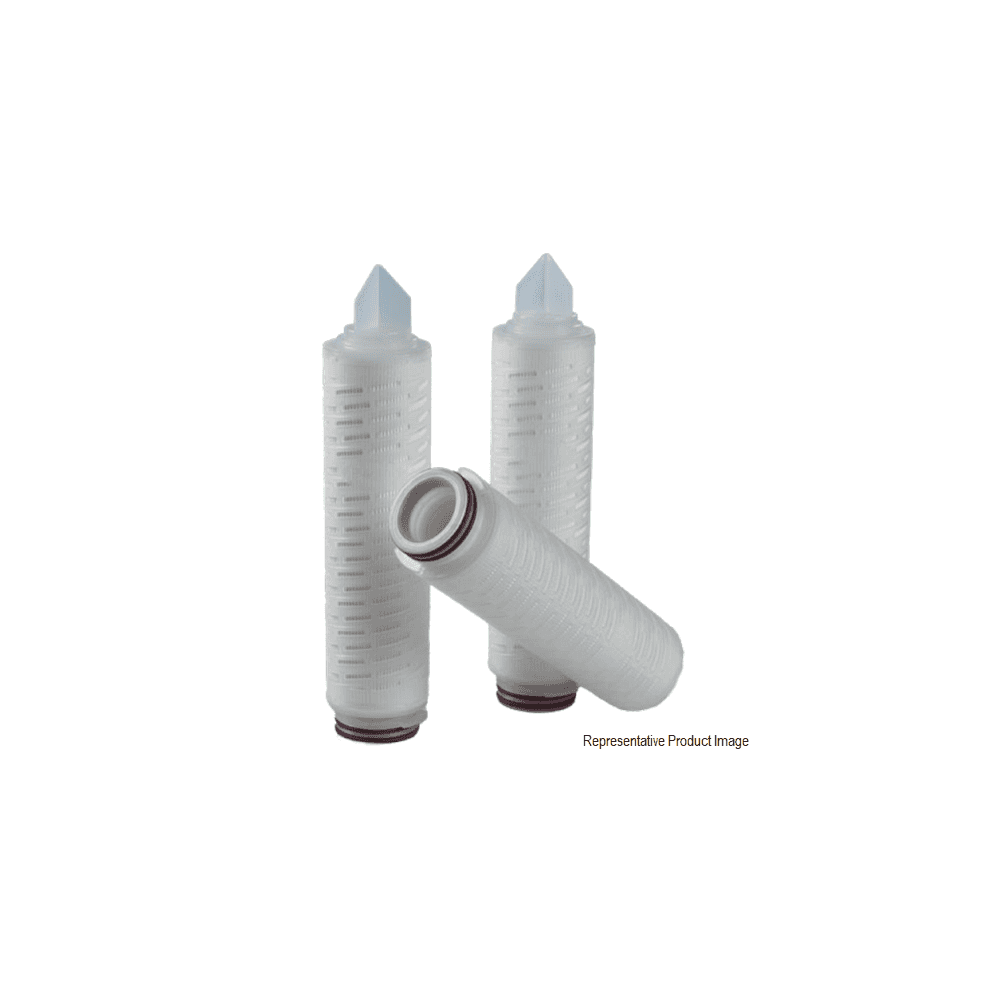

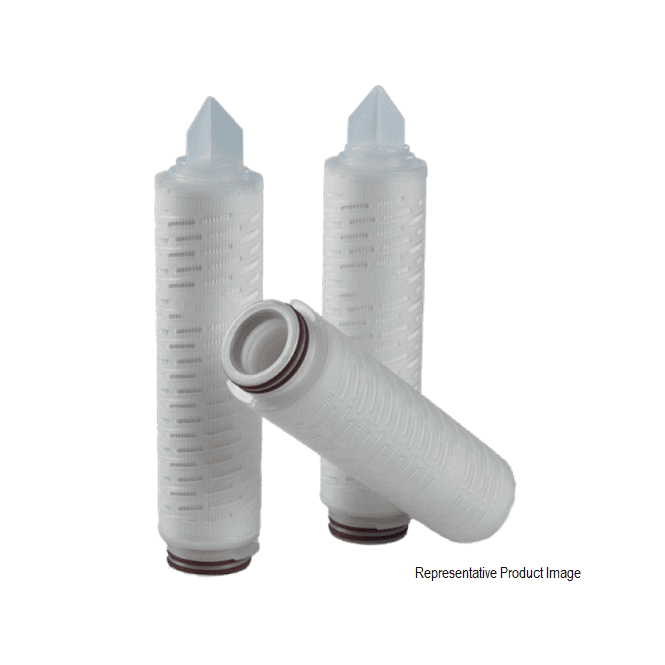

Cytiva Pall AB1PFR7PVJ Emflon PFR membrane filter cartridge 0.2μm sterilizing grade 10-inch length 7700cm² filtration area double-o-ring (ethylene propylene rubber) seal with bayonet lock and finned cap end

Filter, cartridge, air and gas sterilising, polytetrafluoroethylene (PTFE) double layer filter membrane, hydrophobic, 0.2μm sterilising grade removal rating, Code 7 cartridge type, 10-inch (254mm / 25.4cm) cartridge length, 7700cm² effective filtration area, ethylene propylene rubber gasket / o-ring seal material, double o-ring design, suitable for autoclave sterilisation and / or sterilisation in place (SIP), with bayonet lock and finned cap end, pack of 1, Cytiva, Pall, Emflon PFR, AB1PFR7PVJ.

Cytiva Pall Emflon PFR air and gas sterilising PTFE membrane filter cartridges, (a Pall Life Sciences product), offer high assurance and high integrity within air and gas sterilising services.

Cytiva Pall Emflon PFR membrane cartridge filters can be steamed and tested easily to maintain cleanliness and integrity standards.

Keeping filters clean and up to date provides a long service life for the user.

Using PTFE membrane and hydrophobic technology, Cytiva Pall Emflon PFR filters remove contaminating bacteria and viruses.

High strength, long life sterilizing filters for air and gas, Emflon PFR filters have been developed from the successful Emflon filter range launched in 1981 and widely used as air and gas sterilizing filters in the pharmaceutical and biotechnology industries.

Cytiva Pall Emflon PFR filters feature a double layer PTFE membrane which is inherently hydrophobic, chemically inert and designed specifically for removal of contaminating bacteria and viruses.

Cytiva Pall Emflon PFR filters meet the ever increasing demand for air filters with greater strength, longer life and the ability to withstand the rigours of in-situ steaming in the forward or reverse direction.

With excellent performance characteristics, Cytiva Pall Emflon PFR filters provide high assurance of filter integrity and long life, even during continuous use in hot air up to 60°C, in vent applications up to 80°C and during repeated steaming.

With their PTFE filter, Cytiva Pall Emflon PFR cartridges can withstand up to 1 bar (14.5 psi) differential pressure (forward direction) under steam sterilization conditions (125°C).

Combined with high flow rates and excellent dewetting characteristics this results in very economical filtration through the use of smaller installations and reduced energy costs.

In addition, Cytiva Pall Emflon PFR air and gas sterilising PTFE membrane filter cartridges can be tested in-situ by the Forward Flow integrity test, or by a Water Intrusion test - both tests are correlated to liquid bacterial challenge... the "worst case" challenge.

Cytiva Pall Emflon PFR air and gas sterilising PTFE membrane filter cartridges have been extensively and scientifically validated using the most advanced methods and the most sensitive equipment available.

They have an absolute removal rating of 0.2 µm in liquids and 0.003µm in gases and have been validated by:

Brevundimonas (Pseudomonas) diminuta liquid challenge at 107/cm2.

Brevundimonas (Pseudomonas) diminuta aerosol challenge.

PP7 bacteriophage aerosol challenge.

Airborne sodium chloride aerosol challenge at 100 L/min flow (0.003 µm rated in gases).

Comprehensive validation of Cytiva Pall Emflon PFR air and gas sterilising PTFE membrane filter cartridges comprehensive validation assures the highest removal efficiency and highest safety margins.

Cytiva Pall Emflon PFR air and gas sterilising PTFE membrane filter cartridges feature high flow rates and low pressure drop, which allows the use of small systems, thus reducing installation and running costs.

Cytiva Pall Emflon PFR air and gas sterilising PTFE membrane filter cartridges are manufactured with robust construction, ensuring integrity and reliability.

With their long steaming life and capacity for long service, Cytiva's Pall Emflon PFR air and gas sterilising PTFE membrane filter cartridges offer low cost filtration.

Contact us for more information about Sizing Guides.

Contact us for more information about Product Selection Guides.
